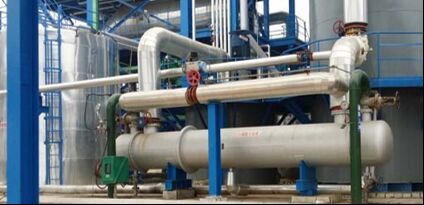

F=175m² Dry Acid Cooler

Process parameters

Project

Design parameters

Performance parameters

Shell Side

Tube Side

Shell Side

Tube Side

 MEDIUM

Fluid Name

Sulfuric Acid 98%

Cooling Water

Sulfuric Acid 98%

Cooling Water

Temperature (Inlet)  ℃

60

33

60

33

Temperature (Outlet)℃

40

43

40

37.993

Liquid Kg/h

128000

128000

180000

Density(inlet/outlet) Kg/m3

1791

1000

1791

1000

Viscosity(inlet/outlet)(cp)

7.45/10.82

0.76

7.45/10.82

0.76

Inlet pressure Mpa

0.3

0.25

0.3

0.25

Pressure drop, Mpa

≤0.1

≤0.1

0.008

0.002

PERFORMANCE

Heat exchanged quantity W

～1040355.6

Flow rate m/s

0.222

0.518

Heat transfer area affluent coefficient

1.1

Heat transfer coefficient W/m2 ℃

486.36

Heat transfer area m2

175

 MATERIAL

Type

Shell and Tube

The flow form

Counter-Current Flow

Sealing form

welding connection in acid side, flange connection in water side

Materials and specifications

Shell

304L    δ= 10

Heat transfer tube

316L    Φ19×2.0×6000

Tubesheet

304L    δ= 55

Baffle-crossing

304L    δ= 10

head

Q235-B  δ= 12

Flange Standard

Shell Side

Tube Side

HG/T20592-2009(B) PN16 DN 150

HG/T20592-2009(B) PN10 DN 200

Size

Φ700×7574×1162

Operating weight

7631 Kg

The scope of supply

●Complete set                                              ●Control system

●Special cable                                             ●Random accessories
