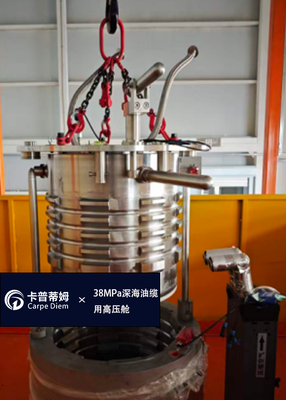

38 MPa High-pressure Chamber with S22053 Material and Modular Design for Deep-sea Test Equipment

This equipment is a high-pressure sealing performance test system specifically designed for factory acceptance testing of deep-sea oil cable assemblies and underwater connectors. It comprehensively verifies structural integrity, sealing reliability, and pressure resistance by simulating deep-sea high-pressure environments.

• High-pressure Chamber: Core test vessel with vertical configuration, fabricated from high-strength duplex stainless steel S22053. Delivers excellent pressure-bearing capacity and space utilization, safely withstanding hydrostatic pressure of 38 MPa.
• Pressurization System: Composed of water storage tank, water injection and drainage pumps, high-pressure pump units, and air compressor. Enables precise pressure control with settable pressure rise rate and automatic/manual mode switching for test stability and repeatability.
• Control System: Built on industrial-grade PLC and industrial control computer with dedicated control software and graphical user interface. Provides intelligent subsystem coordination, status monitoring, and data logging capabilities.
• Hoisting System: Equipped with electric hoist for safe and rapid handling of test specimens into and out of the chamber.
• Auxiliary Systems: Include independent medium supply and recovery unit, filtration devices, operating platform, and stairways. Ensure system cleanliness while providing operational safety and convenience.

Centered on design priorities of high precision, high reliability, and user-friendly human-machine interaction, this equipment meets the demanding high-pressure testing requirements for deep-sea equipment research, development, and manufacturing.
