Name: 80 MPa Deep-Sea Environmental Multi-Parameter Simulation Equipment with Dissolved Oxygen and pH Regulation Systems
Brand: Jiangsu Carpe Diem Ocean Equipment Co., Ltd.
SKU: CDI-PT-A-D-25-1
Price: Negotiable USD
Availability: InStock

80 MPa Deep-Sea Environmental Multi-Parameter Simulation Equipment with Dissolved Oxygen and pH Regulation Systems

MOQ

Negotiated Price

Price

Features Gallery Product Description Chat Now

Features

Specifications

Material: 20MnMoNb

Highlight:

Environmental Multi-Parameter Simulation Equipment

Deep-Sea Environmental Simulation Tester

Basic Infomation

Place of Origin: China

Brand Name: Carpe Diem

Model Number: CDI-PT-A-D-25-1

Payment & Shipping Terms

Packaging Details: Woodcase

Delivery Time: 90 days

Payment Terms: T/T

Supply Ability: 2/per year

Gallery

80 MPa Deep-Sea Environmental Multi-Parameter Simulation Equipment with Dissolved Oxygen and pH Regulation Systems

Product Description

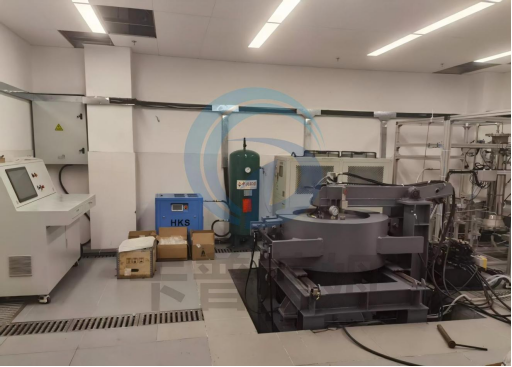

80 MPa Deep-Sea Environmental Multi-Parameter Simulation Equipment

System Overview

The 80 MPa deep-sea environmental simulation equipment is a custom-developed integrated simulation system that combines hardware setup with software control to monitor coupled variations of simulated deep-sea pressure, dissolved oxygen, pH value, and temperature. This system provides a highly realistic deep-sea environment for equipment testing and validation.

Key operational approaches include pump-valve switching, gas regulation, acid-base solution mixing, and temperature adjustment within the pressure vessel.

Equipment Composition

The complete system consists of five integrated subsystems:

Pressure Kettle

Vertical installation design
Specification: DN500*1000 mm
Working pressure: 80 MPa
Clamp-type hydraulic automatic flip cover
6 sets of through-wall connectors

Pressure Control System

Parameter	Specification
Maximum Working Pressure	80 MPa
Control Accuracy	±0.1 MPa
Maximum Pressure Rise Rate	10 MPa/min
Operation	Real-time pressure monitoring via sensors, PLC data processing, and pressure/flow adjustment through frequency converter-controlled booster pump

Dissolved Oxygen Regulation System

Parameter	Specification
Regulation Range	8-15 mg/L
Control Accuracy	±1 mg/L
Operation	Real-time monitoring via dissolved oxygen sensors; oxygen increase through bubble generator; oxygen reduction via sodium sulfite addition

pH Regulation System

Parameter	Specification
Regulation Range	6-10
Control Accuracy	±1
Operation	Real-time monitoring via pH sensor; pH increase using 0.1 mol/L sodium hydroxide solution; pH reduction using 0.1 mol/L sulfuric acid solution

Temperature Regulation System

Parameter	Specification
Regulation Range	10-30 ℃
Control Accuracy	±3 ℃
Operation	Real-time monitoring via temperature sensors, PLC processing, and temperature control through integrated high/low temperature machine
