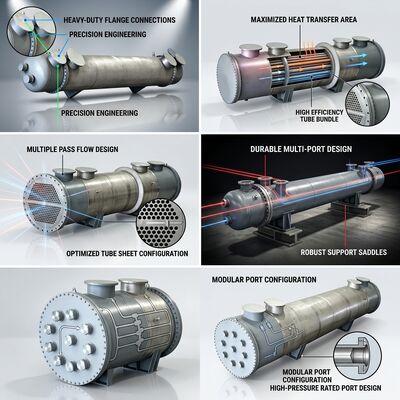

The Carpe Diem CD-AP-390 Industrial Grade Anodic Protection Acid Cooler represents the pinnacle of large-scale sulfuric acid cooling technology, purpose-built for high-throughput acid production facilities processing in excess of 686,000 kilograms of concentrated acid per hour. This colossal 14,207 kilogram heat exchanger combines a massive 399 square meter heat exchange surface with the proven dual-material construction of a 304L stainless steel outer shell and an extensive 316L stainless steel tube bundle, delivering unmatched thermal duty capacity for the world's largest sulfuric acid production plants. The shell diameter of 1,000 millimeters accommodates the expansive tube bundle required to achieve the 399 square meter surface area, while the carefully computed tube pitch and baffle configuration ensure uniform flow distribution and optimal heat transfer coefficients across every tube in the bundle. The integrated anodic protection system operates across multiple independently monitored zones, providing complete electrochemical protection coverage over the entire 399 square meter acid-wetted surface area and maintaining corrosion rates well below 0.1 millimeters per year even when processing 96 percent sulfuric acid at inlet temperatures of 80 degrees Celsius. Designed for acid cooling duties where the outlet temperature is controlled to 66 degrees Celsius, the CD-AP-390 delivers consistent thermal performance that stabilizes downstream process conditions and maximizes absorption tower efficiency in double-contact double-absorption sulfuric acid plants operating at world-scale production capacities.
Key Features| Parameter | Specification |
|---|---|
| Model | CD-AP-390 |
| Type | Anodic Protection Shell and Tube Heat Exchanger |
| Heat Exchange Area | 399 m² |
| Acid Concentration | 96% H²SO&sup4; |
| Inlet Temperature | 80°C |
| Outlet Temperature | 66°C |
| Acid Flow Rate | 686,811 Kg/h |
| Shell Material | 304L Stainless Steel |
| Tube Material | 316L Stainless Steel |
| Tube Specification | Φ19×2.0×6000 mm |
| Overall Dimensions | Φ1000×7294×1470 mm |
| Weight | 14,207 Kg |
| Flow Form | Counter Flow |
| Sealing Form | Expanded Joint |
| Flange Standards | ANSI B16.5 / HG/T 20592 |
| Protection Method | Anodic Protection |
| Cooling Medium | Cooling Water |
The CD-AP-390 is engineered for deployment in world-scale sulfuric acid production plants with daily production capacities exceeding 3,500 metric tons, where the 399 square meter exchange area and 686,811 kilogram per hour acid flow capacity eliminate the need for multiple parallel smaller coolers and simplify plant piping layouts. Primary applications include absorption circuit acid cooling in the largest double-contact double-absorption plants, where the CD-AP-390 serves as the single acid cooler for the intermediate or final absorption tower circuits. The unit is equally effective in spent sulfuric acid regeneration plants at major petroleum refineries, where high-temperature spent acid streams require reliable cooling before being returned to the alkylation or sulfonation processes. Additional applications include byproduct acid cooling at large-scale copper and nickel smelters where acid plant production is integrated with the primary metal smelting operations, and at phosphate fertilizer complexes where sulfuric acid is consumed in phosphoric acid production and the acid temperature directly influences gypsum crystallization quality and filtration rates. The heavy-duty construction and multi-zone anodic protection enable continuous operation for production campaigns extending beyond five years between scheduled shutdowns, making the CD-AP-390 the definitive choice for mission-critical acid cooling in continuous process industries.
Packaging & Quality AssuranceDue to the substantial 14,207 kilogram weight and 1,000 millimeter shell diameter, each CD-AP-390 cooler is shipped in naked packing with a purpose-designed structural steel transport frame that provides lifting points, tie-down lashings, and impact protection during multimodal transportation including ocean freight. All flange faces are protected with full-contact bolted covers, and the entire assembly is wrapped in heavy-gauge vapor-corrosion-inhibiting (VCI) film to prevent atmospheric corrosion during transit. Our quality assurance program for the CD-AP-390 includes 100 percent ultrasonic testing of all shell plate material prior to fabrication, full radiography of all pressure-retaining butt welds, magnetic particle inspection of all fillet welds and nozzle connections, helium mass spectrometer leak testing of all tube-to-tube sheet expanded joints, and a comprehensive hydrostatic pressure test at 1.5 times design pressure across all pressure-containing compartments. Each unit is accompanied by a complete manufacturing record book (MRB) compliant with ASME U Stamp documentation requirements, including material certificates with full chemical and mechanical property traceability, certified weld maps, NDE examiner qualification records, pressure test charts with calibrated gauge certificates, and surface preparation and coating application reports. Carpe Diem provides industry-leading 24-month warranty coverage backed by a global network of field service teams capable of providing on-site installation supervision, commissioning support, operator training programs, and long-term preventive maintenance services. Extended warranty packages with annual inspection visits by ASME-certified inspectors are available upon request.
