High Temperature Resistance Turbulent Flow Dry Acid Cooler Anodic Protection

1
MOQ
Negotiated Price
Price
High Temperature Resistance Turbulent Flow Dry Acid Cooler Anodic Protection
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

High Temperature Resistance dry acid cooler

,

Anodic Protection dry acid cooler

,

Turbulent Flow sulfuric acid cooler
Basic Infomation
Payment & Shipping Terms
Packaging Details: Naked
Delivery Time: 60 Workdays
Payment Terms: T/T
Supply Ability: 1000/year
Product Description



Anodic Protection Sulfuric Acid Cooler with Corrosion Resistance High Temperature Resistance and Turbulent Flow Design Dry Acid Cooler

Process parameters

Project

Design parameters

Performance parameters


Shell Side
Tube Side
Shell Side
Tube Side

MEDIUM

Fluid name
Sulfuric Acid
93.5%
Cooling Water
Sulfuric Acid
93.5%
Cooling Water



Temperature (Inlet)  ℃
65.3
33
65.3
33



Temperature (Outlet)℃
50
41
50
40.985



Liquid Kg/h
1790000

1790000
1345000



Density(inlet/outlet) Kg/m3
1790
1000
1790
1000



Viscosity(inlet/outlet)(cp)
9.0
0.76
9.0
0.76



Inlet pressure Mpa
0.36
0.25
0.36
0.25



Pressure drop, Mpa
≤0. 1
≤0. 1
0.099
0.007

PERFORMANCE

Heat exchanged quantity W

~12430655.0



Flow rate m/s

0.581
0.977



Heat transfer area affluent coefficient

1.15



Heat transfer coefficient W/m2 ℃

783.446



Heat transfer area m2

880

 MATERIAL

Type
shell and tube
The flow form
counter-current flow



Sealing form
welding connection in acid side, flange connection in water side



Materials and specifications
shell
304          δ= 16




Heat transfer tube
316L        Φ19×1.5×7500




Tubesheet
304          δ= 70




Baffle-crossing
304          δ= 16




head
Q235-B    δ= 70



Flange standard
Shell Side
Tube Side




HG/T20592-2009(B)PN10 DN 600
HG/T20592-2009(B) PN10 DN 600

Size
Φ1600×9814×2082

Operating weight
36856 Kg

The scope of supply
●Complete set                                              ●Control system
         ●Special cable                                              ●Random accessories

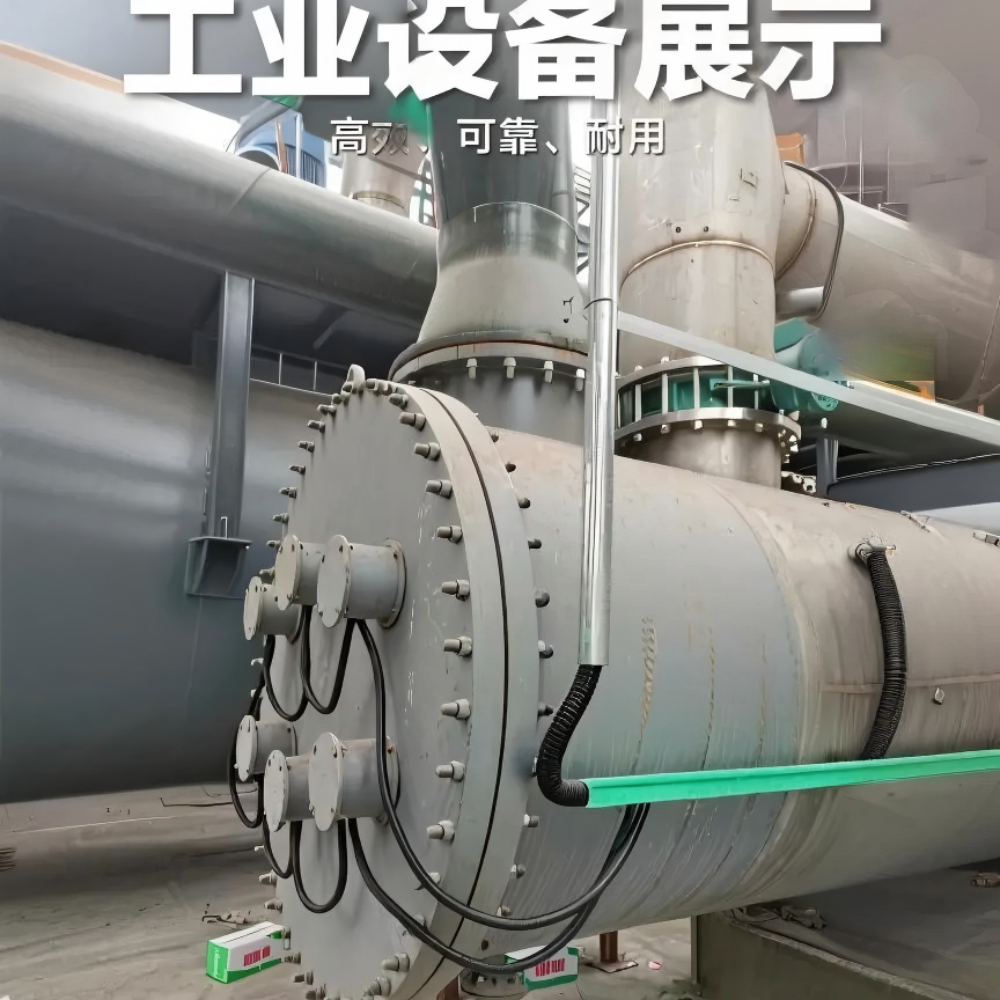

Anodic Protection Strong Acid Cooler
Jiangsu Carpe Diem Ocean Equipment Co., Ltd. specializes in industrial heat transfer solutions designed for demanding chemical processing environments. The Anodic Protection Sulfuric Acid Cooler represents our core expertise in handling aggressive acidic conditions.
Robust Acid Processing Solution
While appearing as a standard shell-and-tube heat exchanger, this equipment is engineered specifically for high-temperature acid cooling applications. It handles 93% to 99% sulfuric acid in the drying and absorption stages of contact plants, where conventional equipment fails rapidly due to severe corrosion.
Anodic Protection Technology
The system operates on advanced anodic protection principles, maintaining steel components in a controlled electrical state within the passive zone. This requires precise integration of cathode assemblies, reference electrodes, and potentiostat-controlled DC power systems.
  • Protective Oxide Formation: Applied DC current initiates an invisible oxide film that dramatically reduces corrosion rates by orders of magnitude
  • Continuous Monitoring: Real-time potential monitoring between steel and electrodes ensures consistent passive zone operation, preventing both active and transpassive corrosion
  • Robust Construction: Heavy-duty rod baffles provide dual functionality—securing tubes against vibration while enhancing heat transfer efficiency
Key Performance Advantages
  • Superior Corrosion Resistance: Enables stainless steel performance in environments previously considered unsuitable
  • Stable Protective Film: Maintains integrity across temperature variations, preventing gradual equipment degradation
  • Enhanced Heat Transfer: Turbulent flow optimization and efficient heat plate utilization minimize energy waste
  • Operational Reliability: Automated monitoring systems with remote access capabilities prevent unexpected shutdowns and leaks
  • High-Temperature Operation: Safe performance at 160°C and above enables effective waste heat recovery and operational cost savings
Delivered Performance
Each cooler from Jiangsu Carpe Diem Ocean Equipment Co., Ltd. delivers autonomous operation with proven engineering, built to withstand the demanding conditions of large-scale acid processing plants while maintaining long-term reliability and performance.
