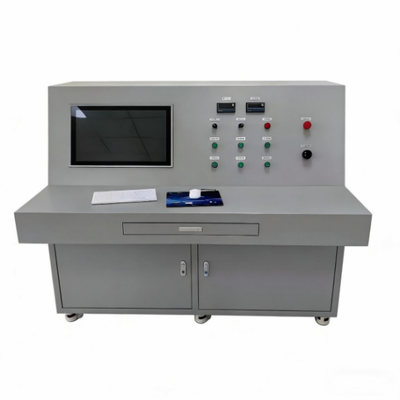

Computer-controlled Hydrostatic Pressure Test Machine with 0-40 MPa Pressure Range and Automatic Pressure Rise

The hydrostatic pressure test machine consists of two core parts: a computer control unit and a power-source pressure control unit. Test parameters are set via the computer, and the system pressure is detected by pressure sensors. The collected data is transmitted to the upper computer through a data acquisition card. The sensors can accurately capture the burst peak value, and the entire test procedure is fully controlled by the computer.

• Hydrostatic pressure testing
• Burst testing
• Ambient temperature and medium temperature for test: room temperature
• Infinitely adjustable test pressure controlled by computer program with automatic pressure rise, pressure holding, pressure relief and exhaust
• Optional test procedures: Constant-rate pressure rise - Burst; Constant-rate pressure rise - Pressure holding - Pressure relief; Constant-rate pressure rise - Pressure holding - Burst
• Computer control with single-stage or multi-stage pressure holding test capabilities
• Real-time display of test data and curve parameters with automatic saving and reporting
• Manual pressure relief available for emergency situations
