Home /Products/Sulfuric Acid Distributor/Alkylation Units Utilizing Sulfuric Acid Distributor For Strong Acid

Alkylation Units Utilizing Sulfuric Acid Distributor For Strong Acid

1
MOQ
Negotiated Price
Price
Alkylation Units Utilizing Sulfuric Acid Distributor For Strong Acid
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

Alkylation Units Utilizing Sulfuric Acid Distributor

,

Strong Acid Sulfuric Acid Distributor

,

Anodic Protection acid distributor
Basic Infomation
Place of Origin: China
Brand Name: Carpe Diem
Model Number: CD-002
Payment & Shipping Terms
Packaging Details: Naked
Delivery Time: 40 Workdays
Payment Terms: T/T
Supply Ability: 2000/year
Product Description

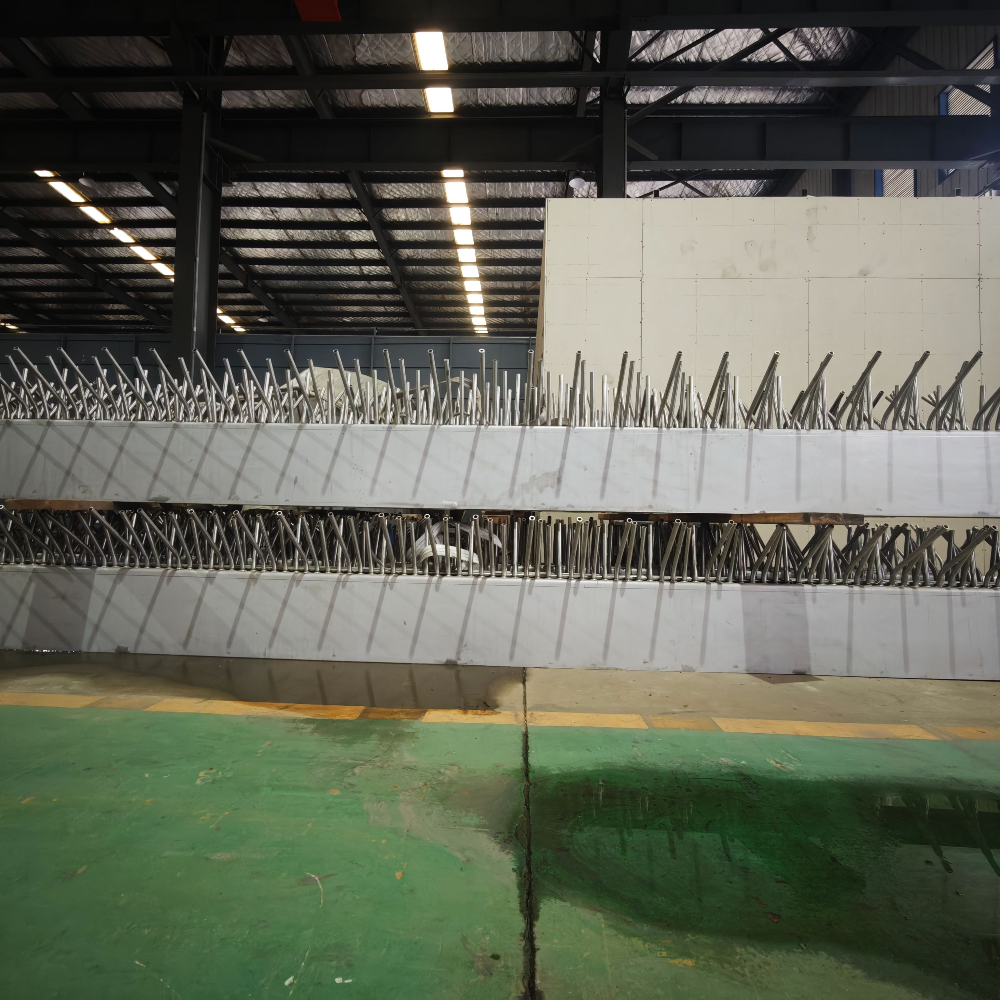

Anodic Protection Distributor For Strong Acid
Equipment Overview
The Anodic Protection Acid Distribution Equipment is a precision-fabricated assembly designed for controlled handling of concentrated sulfuric acid (strengths exceeding 96%) and oleum within industrial processing applications. Primary installation locations include sulfuric acid alkylation sections at petroleum refining facilities and absorption/drying stages of acid production plants.
This equipment satisfies two fundamental operational requirements: it provides uniform liquid deposition across the vessel's internal packing while utilizing electrochemical surface treatment to withstand aggressive acid environments.
Operational Fundamentals
Fluid Distribution System: The internal structure incorporates interconnected collection channels, precision-calibrated overflow edges, and distribution openings. The device captures incoming acid streams and separates them into multiple smaller flows that descend evenly onto underlying packing substrate, ensuring complete coverage and preventing dry zones while promoting effective gas-liquid exchange.
Corrosion Control Through Electrochemical Methods: Conventional metallic materials experience accelerated breakdown when exposed to elevated temperatures in concentrated sulfuric acid. The system addresses this through strategic material selection combined with externally applied anodic protection.
Technical Basis: A regulated electrical potential is maintained on the metal surface, preserving its condition within a stable passive region. This action supports formation and persistence of a continuous, firmly bonded protective film that isolates base metal from corrosive media.
Practical Outcome: This approach limits material deterioration to minimal rates (typically under 0.1 mm per year), resulting in prolonged equipment service life and prevention of metallic contamination entering process acid streams.
Construction Details
  • Materials Employed: Fabricated from austenitic stainless steel grades (including 304L and 316L) chosen for favorable response to anodic conditioning and acid resistance
  • Hydraulic Parameters: Incorporates carefully determined weir elevations and aperture dimensions to maintain uniform fluid dispersion across complete operating range
  • Installation Procedure: Manufactured in modular sections that pass through standard vessel entry points, enabling interior assembly without requiring field welding operations
  • Electrical Layout: Features strategically positioned electrode components within acid pathway to complete protective circuit without disrupting distribution patterns
Performance Advantages
  • Extended Service Duration: Reduces ongoing maintenance costs through effective control of corrosion-induced material loss
  • Acid Quality Maintenance: Prevents metal ions from entering acid flow, satisfying purity requirements for sensitive downstream processes
  • Process Efficiency: Ensures consistent wetting of column internals, facilitating optimal mass transfer and separation functions
  • Structural Integrity: Preserves mechanical soundness during continuous operation under elevated temperatures and aggressive chemical exposure
Typical Applications
  • Alkylation Units Utilizing Sulfuric Acid as Catalyst
  • Drying Towers and Absorption Columns in Acid Manufacturing Operations
  • Acid Temperature Regulation and Circulation Systems
Tag:

acid distributor

sulfuric acid distributors

Alkylation Units Utilizing Sulfuric Acid Distributor
