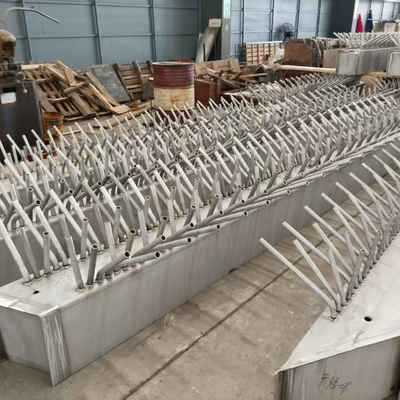

Anti Corrosion Custom Anodic Protection Acid Distributors For Uniform Liquid Application

1
MOQ
Negotiated Price
Price
Anti Corrosion Custom Anodic Protection Acid Distributors For Uniform Liquid Application
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

Anti Corrosion acid distributors

,

acid distributors Anodic Protection

,

Uniform Liquid sulfuric acid distributors
Basic Infomation
Place of Origin: China
Brand Name: Carpe Diem
Model Number: CD-002
Payment & Shipping Terms
Packaging Details: Naked
Delivery Time: 40 Workdays
Payment Terms: T/T
Supply Ability: 2000/year
Product Description
Custom Anodic Protection Acid Distribution Equipment For Uniform Liquid Application And Corrosion Resistance With Electrochemical Surface Stabilization
Anodic Protection Acid Distribution Equipment: Engineering Specifications
Product Overview
The Anodic Protection Acid Distribution Equipment is a precision-fabricated assembly engineered for the controlled management of concentrated sulfuric acid (levels exceeding 96%) and oleum within industrial processing environments. Its principal installation locations encompass sulfuric acid alkylation sections at petroleum refining complexes and the absorption/drying stages of acid manufacturing facilities.
This equipment addresses two distinct operational demands: it ensures uniform liquid application across the vessel's internal components while utilizing electrochemical surface stabilization to counteract the aggressive characteristics of the acid medium.
Core Operating Principles
Liquid Distribution Arrangement:
The internal configuration features interconnected collection troughs, precision-machined overflow lips, and distribution outlets. The device captures the incoming acid stream and separates it into multiple individual flows that descend evenly onto the underlying packing substrate. This design guarantees complete coverage of the packing surfaces, eliminates the formation of dry zones, and promotes effective gas-liquid exchange within the tower structure.
Corrosion Resistance Through Anodic Techniques:
Standard metallic materials undergo rapid deterioration when subjected to elevated temperatures in concentrated sulfuric acid service. The system resolves this challenge through strategic alloy selection coupled with an externally imposed anodic protection system.
Technical Concept: A regulated electrical current is maintained on the metal surface, preserving its potential within a stable passive region. This mechanism encourages the formation and persistence of a continuous, firmly bonded protective layer that insulates the base metal from the corrosive fluid.
Practical Application: This methodology restricts material loss to minimal rates (typically under 0.1 mm per year). The result is extended equipment longevity and prevention of metallic contamination entering the process acid stream.
Design Characteristics
  • Material Composition: Fabricated from austenitic stainless steel grades (including 304L and 316L) chosen for their favorable response to anodic conditioning and ability to withstand acid exposure.
  • Flow Dynamics: Incorporates carefully calculated weir elevations and aperture dimensions to maintain uniform fluid dispersion across the entire operating range.
  • Installation Approach: Manufactured in modular sections that pass through standard vessel access points, enabling interior assembly without requiring field welding operations at the site location.
  • Electrical Configuration: Features strategically positioned electrode components within the acid pathway to complete the protective circuit without disrupting distribution patterns.
Operational Advantages
  • Extended Service Life: Reduces ongoing maintenance expenditures through effective control of corrosion-induced material loss.
  • Acid Purity Assurance: Prevents metal ions from entering the acid flow, satisfying purity requirements for sensitive downstream processes.
  • Process Efficiency: Ensures consistent wetting of column internals, facilitating optimal mass transfer and separation performance.
  • Structural Integrity: Preserves mechanical soundness during continuous operation under elevated temperatures and aggressive chemical exposure.
Typical Applications
  • Alkylation Units Utilizing Sulfuric Acid as Catalyst
  • Drying Towers and Absorption Columns in Acid Manufacturing Operations
  • Acid Temperature Regulation and Circulation Systems
