Anodically Protected Acid Distributor With Corrosion Resistant Metallurgy

The Anodic Protection Acid Diversion Distributor, commonly referred to as the Anodically Protected Acid Distributor, is essential equipment for handling concentrated sulfuric acid (above 96% concentration) and oleum in demanding industrial settings. It is primarily used in alkylation units of petroleum refineries and absorption/drying towers of sulfuric acid manufacturing plants.

This unit combines two critical functions: ensuring homogeneous acid dispersion over tower internals and providing superior corrosion resistance through an integrated anodic protection system.

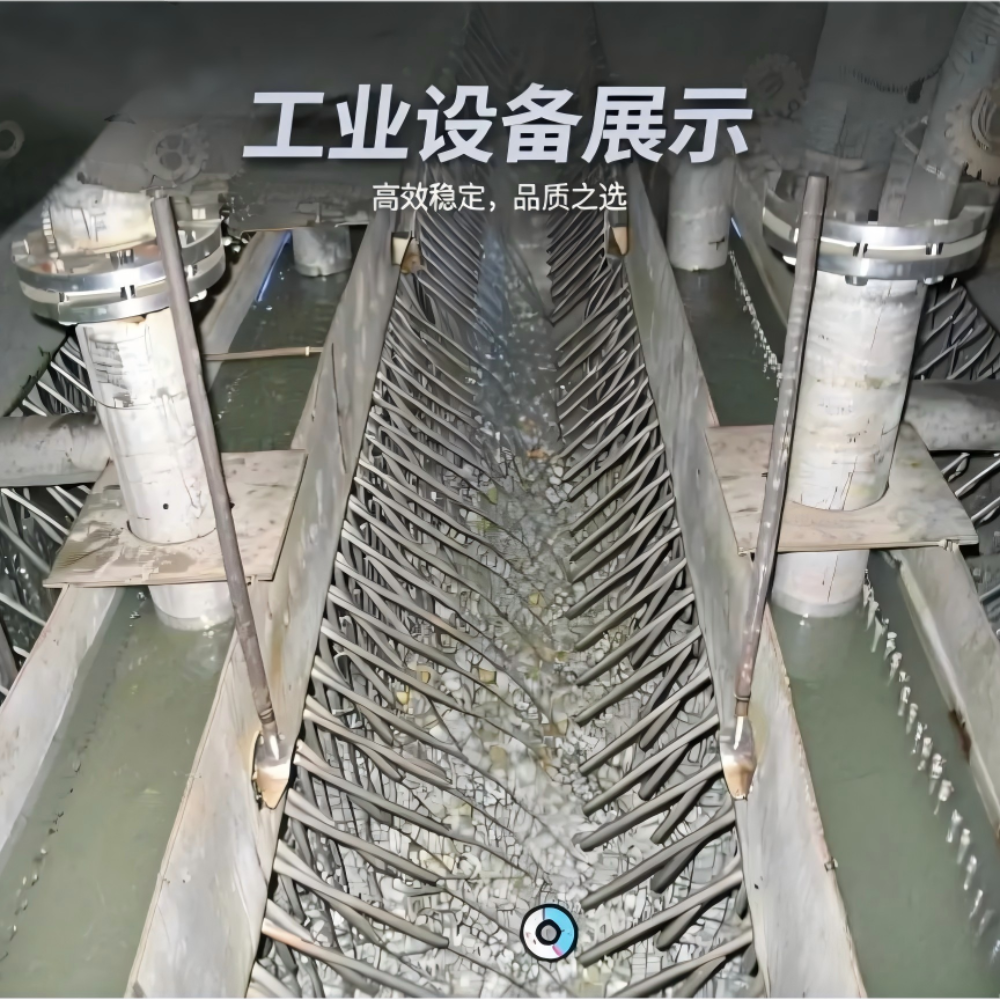

The distributor features a precisely engineered arrangement of channels, overflow weirs, and feed pipes. Its primary function is to receive incoming acid streams and distribute them uniformly across the tower's packing surface. This consistent wetting maximizes gas-liquid contact area, ensuring optimal mass-transfer performance while preventing dry spots or channeling.

Standard metals rapidly deteriorate when exposed to hot, concentrated sulfuric acid. The distributor is constructed from premium stainless steel grades (typically 304L or 316L) and protected by an external anodic protection system.

• Operational Principle: A power source applies regulated positive current to the equipment, shifting its surface potential into a stable passive region that promotes formation of a durable oxide film resistant to acid dissolution.
• Key Outcome: This approach dramatically reduces corrosion rates (typically below 0.1 mm annually), preserving structural integrity over extended service life while preventing metal contamination of process acid.

• Corrosion-Resistant Metallurgy: Fabricated from austenitic stainless steels selected for optimal anodic passivation response and durability in acid service
• Precision Fluid Mechanics: Features precisely leveled weirs and calculated orifice sizing for stable, uniform liquid distribution across varying flow rates
• Shop-Fabricated Sections: Designed in segments for easy installation through manways without field welding requirements
• Embedded Cathodic Elements: Includes purpose-built cathodes within the acid flow to complete efficient electrical circuits for anodic protection

• Prolonged Operational Life: Significantly reduces lifecycle costs by minimizing corrosion-related downtime and component replacement
• Contaminant-Free Acid Stream: Prevents introduction of iron and other metallic ions, maintaining acid purity for sensitive applications
• Enhanced Process Dynamics: Ensures optimal acid distribution for superior mass/heat transfer and overall process efficiency
• Robust Operational Safety: Maintains mechanical reliability under severe conditions, reducing risk of hazardous leaks or equipment failure

• Alkylation Units in Petroleum Refining
• Absorption and Drying Towers in Sulfuric Acid Production (Contact Process)
• High-Temperature Acid Recovery Systems
• Critical acid storage and transfer points requiring maximum purity

In Summary: The Anodic Protection Acid Diversion Distributor represents the integration of precise mechanical design with advanced electrochemical principles. By combining effective fluid distribution with state-of-the-art corrosion mitigation, it provides a durable, high-performance solution for the most challenging sulfuric acid handling operations.
