Home /Products/Acid Cooler/Anodic Protection Sulfuric Acid Cooler with Corrosion Resistance High Heat Transfer and Extended Service Life

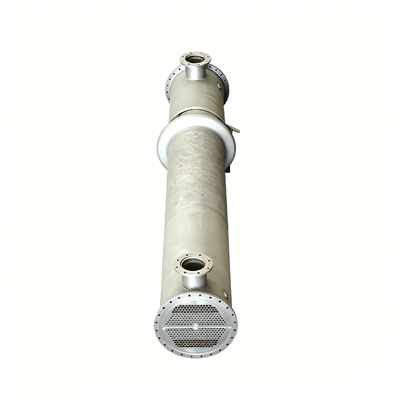

Anodic Protection Sulfuric Acid Cooler with Corrosion Resistance High Heat Transfer and Extended Service Life

1
MOQ
Negotiated Price
Price
Anodic Protection Sulfuric Acid Cooler with Corrosion Resistance High Heat Transfer and Extended Service Life
Features Gallery Product Description Chat Now
Features
Specifications
Basic Infomation
Place of Origin: China
Brand Name: Carpe Diem
Model Number: CD-001
Payment & Shipping Terms
Packaging Details: Naked
Delivery Time: 90 days
Supply Ability: 1000/per year
Product Description
Anodic Protection Sulfuric Acid Heat Exchanger 2nd Stage Acid Cooler
Industrial production of strong acids often suffers from accelerated wear of standard cooling equipment, as high-temperature concentrated acid media trigger severe metal corrosion and disrupt regular production rhythm. To solve this practical manufacturing problem, the anode protection acid cooler is developed as a specialized heat exchange facility.
Advanced Corrosion Protection
Designed to withstand extreme corrosive working conditions, this equipment is primarily used in commercial manufacturing of sulfuric acid and phosphoric acid. Through unique electrochemical anti-corrosion design, it effectively slows down metal corrosion rates in strong acid environments, maintaining stable heat exchange efficiency and ensuring continuous, safe operation of acid production systems.
Technical Performance
The reliable anti-corrosion performance relies on mature anodic polarization regulation technology. A professional supporting control system outputs precise and stable polarization potential to all stainless steel components in contact with acid media. This electrochemical reaction forms a dense, stable, and non-falling protective passivation layer that isolates the substrate from corrosive acid substances.
Corrosion Rate: 0.01 to 0.03 mm annually
Construction: Integral full-welded fabrication
Media Flow: Separate circulation mode
Monitoring: High-precision automatic adjustment
Design & Operation
Featuring solid structural strength and compact layout, this acid cooler adapts well to diverse factory installation spaces. It employs a scientific separate circulation mode: industrial acid flows on the shell side while cooling water runs in a closed cycle inside the tube bundles. Fitted with high-precision monitoring components, the equipment updates polarization parameters in real-time according to changes in acid temperature and concentration.
Applications & Benefits
This professional cooling device is widely applied in multiple key links of sulfuric acid production, including:
  • Raw material drying
  • Medium absorption
  • Finished product purification
The application of anodic protection technology greatly extends equipment service cycle, reduces unexpected production shutdowns, and lowers long-term operation and maintenance costs. It effectively improves the purity and overall quality of acid products while providing excellent anti-corrosion stability and energy-saving heat exchange performance.
Tag:

Sulfuric Acid Cooler

acid cooler

dry acid cooler
