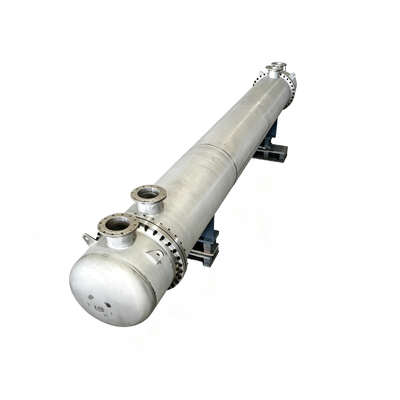

Anodic Protection Sulfuric Acid Cooler with Corrosion Resistance and High Heat Transfer Efficiency

1
MOQ
Negotiated Price
Price
Anodic Protection Sulfuric Acid Cooler with Corrosion Resistance and High Heat Transfer Efficiency
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

anodic protection sulfuric acid cooler

,

corrosion resistant acid cooler

,

high heat transfer acid cooler
Basic Infomation
Place of Origin: China
Brand Name: Carpe Diem
Model Number: CD-001
Payment & Shipping Terms
Packaging Details: Naked
Delivery Time: 90 days
Payment Terms: T/T
Supply Ability: 1000/per year
Product Description
Anodically Protection Sulfuric Acid Cooler - 2nd Stage Acid Cooler
Serving as key anti-corrosion heat exchange equipment in chemical industries, anode protection acid coolers are specially developed to cope with high-temperature concentrated acid cooling conditions. They are predominantly deployed in the manufacturing of sulfuric acid and phosphoric acid, two mainstream inorganic acid products.
Advanced Corrosion Protection Technology
Different from traditional cooling equipment prone to acid erosion, this device combines innovative electrochemical protection techniques with optimized heat exchange structures. It effectively shields internal metal components from severe corrosion caused by high-temperature strong acid media, delivering reliable operational guarantees for continuous, safe and efficient production of acid-making systems.
The equipment's unique anti-corrosion capability originates from precise anodic polarization regulation. By applying a stable and calibrated electric potential to the stainless steel medium contact surface, the device induces the spontaneous generation of a tight, tough passivation film.
This protective barrier completely separates the metal substrate from corrosive acid, limiting the annual corrosion rate within 0.01-0.03 mm and achieving much better wear resistance than conventional cooling units. During normal operation, circulating cooling water inside tube bundles continuously absorbs medium heat, rapidly cooling overheated acid to the temperature range compliant with industrial process standards.
Robust Design & Operational Features
Adopting an integral fully welded structural design, the cooler features a compact and space-saving layout suitable for factory installation. It follows a scientific separated flow design: concentrated acid flows through the shell side externally, while cooling water circulates inside the tube bundles.
  • High-sensitivity monitoring and control electrodes for real-time dynamic adjustment
  • Flexible adaptation to fluctuating acid temperatures and concentrations
  • Stable and lasting anti-corrosion protection in complex working conditions
  • High heat exchange efficiency and strong operational stability
  • Perfect for long-term uninterrupted industrial operation
Industrial Applications & Benefits
This cooling device is widely used in core working sections of sulfuric acid production, including material drying, medium absorption and product purification. It perfectly remedies the inherent drawbacks of traditional cast iron and ordinary stainless steel coolers.
The application of anodic protection technology effectively extends equipment service life, lowers unplanned shutdown losses and daily maintenance investment, and stabilizes the purity and comprehensive quality of finished acid products. Featuring reliable corrosion resistance and efficient heat dissipation performance, it has evolved into a high-efficiency, energy-saving and cost-stable core facility for modern acid chemical manufacturers.
