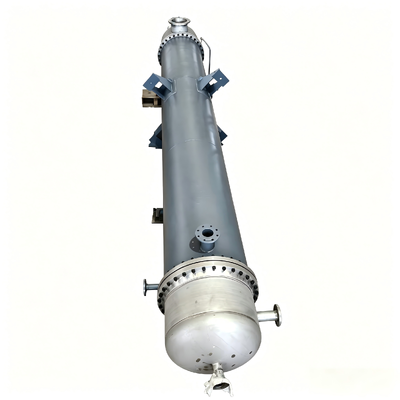

Anodic Protection Sulfuric Acid Cooler with Corrosion Resistance and High Heat Transfer Efficiency

Anode protection acid coolers are specialized industrial heat exchangers engineered for harsh acid cooling applications in chemical manufacturing. Primarily utilized in sulfuric acid and phosphoric acid production, this professional equipment addresses the critical corrosion challenges that affect conventional cooling devices.

The device achieves exceptional anti-corrosion performance through precise anodic polarization control. When an optimized potential is applied to the stainless steel contact surface, a dense and robust passivation layer actively forms on the metal surface. This compact protective coating isolates the metal matrix from corrosive acid media, maintaining an annual corrosion rate of only 0.01 to 0.03 mm—significantly outperforming ordinary cooling facilities.

Featuring an all-welded integrated structure, the acid cooler offers a compact layout that optimizes plant installation space. It employs a dual-medium separated flow design: concentrated acid flows outside the tubes through the shell side, while cooling water circulates inside the tube bundles.

• High-precision detection and control electrodes for intelligent polarization parameter adjustment
• Real-time adaptation to variable working conditions with changing acid temperature and concentration
• Sustained stable and effective anti-corrosion protection
• High heat transfer efficiency with excellent operational stability
• Designed for long-term continuous industrial operation

During operation, cooling water circulating inside tube bundles efficiently absorbs heat from high-temperature acid, rapidly lowering the medium temperature to meet standard industrial production specifications.

Widely applied in drying, absorption, and purification processes of sulfuric acid production, anode protection acid coolers effectively overcome the limitations of traditional cast iron and common stainless steel coolers, including poor corrosion resistance, short service life, and frequent maintenance requirements.
