Corrosion Resistant Anode Protected Acid Cooler with High Heat Transfer Efficiency and Extended Service Life

1
MOQ
Negotiated Price
Price
Corrosion Resistant Anode Protected Acid Cooler with High Heat Transfer Efficiency and Extended Service Life
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

corrosion resistant acid cooler

,

anode protected acid cooler

,

high heat transfer acid cooler
Basic Infomation
Place of Origin: China
Brand Name: Carpe Diem
Model Number: CD-001
Payment & Shipping Terms
Packaging Details: Naked
Delivery Time: 90 days
Payment Terms: T/T
Supply Ability: 1000/per year
Product Description

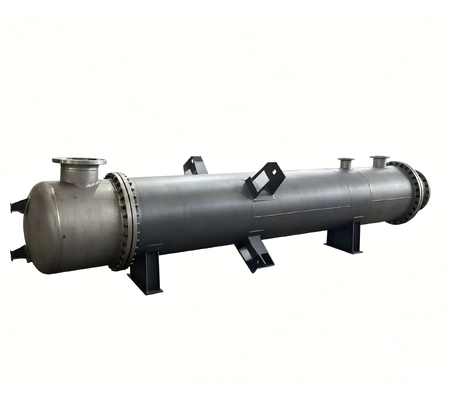

Anode Protected Sulfuric Acid Cooler Fuming Acid Cooler
As professional shell-and-tube heat exchangers, anode protection acid coolers are specially developed to cool high-temperature, highly corrosive concentrated acid media. They are widely applied in industrial production scenarios of sulfuric acid, phosphoric acid and other inorganic acid chemical fields.
Advanced Corrosion Protection Technology
Combining mature electrochemical anode protection technology, the equipment effectively tackles the ubiquitous corrosion issue of metal components in strong acid environments. It serves as essential heat exchange equipment to guarantee stable operation of industrial acid-making systems.
The core operation is based on controllable anodic polarization technology. By applying a steady external polarization potential to the stainless steel surface contacting acid media, the equipment actively induces the metal to form a stable passivation layer.
This dense and compact protective film effectively separates the metal substrate from corrosive acid substances, controlling the annual corrosion rate within 0.01 to 0.03 mm and achieving far better anti-corrosion performance than ordinary unprotected cooling equipment.
Efficient Heat Exchange Design
At the same time, circulating cooling water inside the tube bundles realizes efficient heat exchange, rapidly reducing the temperature of high-temperature acid to meet standardized industrial process requirements.
This cooler adopts an all-welded compact overall structure, with a reasonable flow design of acid on the shell side and cooling water on the tube side. Matched with high-precision monitoring and control electrode components, the device can automatically adjust polarization parameters in real time.
Operational Benefits
  • Maintains continuous and effective anti-corrosion protection under variable working conditions
  • High heat transfer efficiency with minimal floor space requirements
  • Reliable long-term continuous operation capability
  • Extends service cycle of production devices
  • Reduces equipment downtime and operational maintenance costs
  • Upgrades purity and overall quality of acid products
Industrial Applications
Commonly used in the drying, absorption and purification working sections of sulfuric acid production, anode protection acid coolers perfectly make up for the inherent deficiencies of traditional cast iron and ordinary stainless steel cooling equipment, such as short service life and frequent maintenance.
Thanks to its superior anti-corrosion performance and stable heat exchange capacity, it has become an indispensable energy-saving and long-life core device for modern acid chemical manufacturing enterprises.
