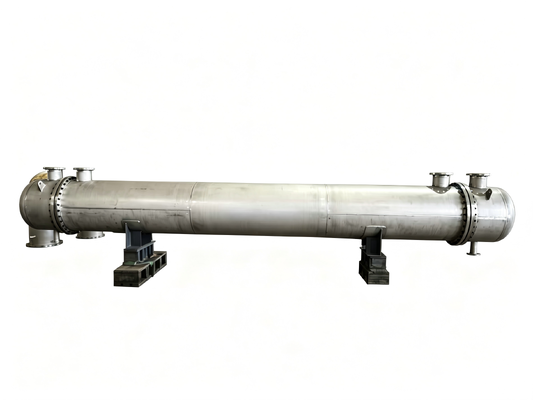

Corrosion Resistant Anode Protected Acid Cooler with High Heat Transfer Efficiency and Extended Service Life

1
MOQ
Negotiated Price
Price
Corrosion Resistant Anode Protected Acid Cooler with High Heat Transfer Efficiency and Extended Service Life
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

corrosion resistant acid cooler

,

anode protected acid cooler

,

high heat transfer acid cooler
Basic Infomation
Place of Origin: China
Brand Name: Carpe Diem
Model Number: CD-001
Payment & Shipping Terms
Packaging Details: Naked
Delivery Time: 90 days
Payment Terms: T/T
Supply Ability: 1000/per year
Product Description
Anode Protected Sulfuric Acid Cooler 1st Stage Acid Cooler
The anode protection acid cooler is a professional shell-and-tube heat exchanger specifically designed for cooling high-temperature, high-concentration corrosive acid media. This equipment is widely deployed in sulfuric acid, phosphoric acid, and other chemical production processes.
Advanced Protection Technology
Integrated with advanced electrochemical anodic protection technology, this equipment effectively addresses severe corrosion issues of metal components in strong acid environments. It serves as core heat-exchange equipment in acid production systems.
The equipment operates based on controlled anodic polarization. A stable external potential is applied to the stainless steel surface that contacts acid media, driving the metal into a steady passive state and forming a compact, corrosion-resistant passivation film.
Superior Performance Benefits
  • Insulates metal substrate from corrosive acid, lowering annual corrosion rate to 0.01-0.03 mm
  • Significant improvement over unprotected equipment performance
  • Efficient heat transfer through circulating cooling water inside tube bundle
  • Rapidly cools high-temperature acid to meet standard process requirements
Design Features
The cooler features an all-welded, compact structural design with acid flowing through the shell side and cooling water through the tube side. Fitted with high-precision monitoring and control electrodes, it dynamically adjusts polarization parameters in real time, maintaining stable and reliable anti-corrosion performance under fluctuating temperature and concentration conditions.
Superior heat exchange efficiency with small footprint and stable long-term operation.
Industrial Applications
Commonly applied in the drying, absorption, and purification sections of sulfuric acid production, the anode protection acid cooler remedies the shortcomings of traditional cast iron and ordinary stainless steel coolers, such as short service life and frequent maintenance.
This technology effectively prolongs equipment service cycles, reduces operational downtime and maintenance costs, and guarantees higher acid product purity. Thanks to its excellent corrosion resistance and consistent heat exchange performance, it has become an indispensable energy-saving and high-durability device for modern acid chemical enterprises.
