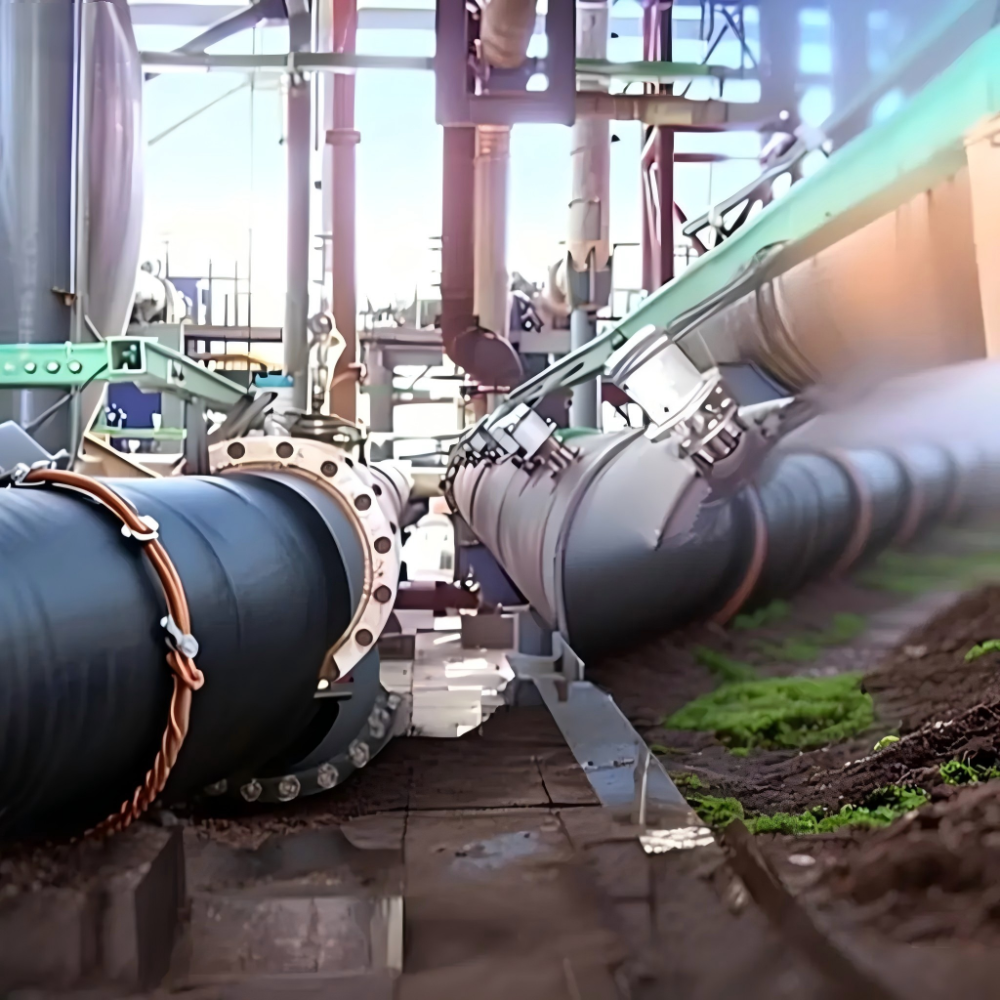

Custom Austenitic Stainless Steel Sulfuric Acid Pipe For Concentrated Sulfuric Acid

1
MOQ
Negotiated Price
Price
Custom Austenitic Stainless Steel Sulfuric Acid Pipe For Concentrated Sulfuric Acid
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

Custom Sulfuric Acid Pipe

,

Sulfuric Acid Pipe Stainless Steel

,

Concentrated Sulfuric Acid anodically protected pipe
Basic Infomation
Place of Origin: China
Brand Name: Carpe Diem
Model Number: CD-003
Payment & Shipping Terms
Packaging Details: Naked
Delivery Time: 40 Workdays
Payment Terms: T/T
Supply Ability: 2000/year
Product Description
Custom Austenitic Stainless Steel Anodically Protected Acid Pipe for Concentrated Sulfuric Acid with Electrochemical Corrosion Management
Anodically Protected Piping: Equipment Specification
General Description
Anodically Protected Piping refers to an assembly of metallic lines, typically manufactured from austenitic stainless steel grades including 304L and 316L, that are protected against corrosive deterioration through an external electrochemical method known as anodic protection (AP). This technology is widely adopted across chemical and petrochemical industries for the safe and reliable conveyance of highly aggressive media, particularly concentrated sulfuric acid (exceeding 85% concentration) and oleum.
Basic Operating Principle
Anodic protection serves as an electrochemical corrosion control technique that employs an externally applied direct current (DC) to maintain the internal surface of the piping within a passive electrochemical state.
System Elements
A complete AP configuration for piping comprises several essential components:
  • The Piping (Anode): The line itself, constructed from a passivatable alloy like 316L stainless steel, functions as the anode within the electrical circuit.
  • DC Power Unit: A controlled power source that delivers the necessary current to shift and sustain the pipe's electrochemical potential.
  • Cathodes: Electrodes, frequently made from materials such as Hastelloy B-2, are installed within the pipe and connected to the negative terminal of the power supply to close the circuit.
  • Reference Electrodes: Stable electrode assemblies, including platinized titanium (Pt/Ti) types, are utilized to continuously monitor the electrochemical potential of the pipe wall against a known reference point.
Protection Mechanism
In severely corrosive environments such as hot sulfuric acid, unprotected stainless steel can undergo rapid degradation. The AP system counteracts this by imposing a regulated positive potential onto the pipe. This action drives the metal surface into a passive potential region, where a thin, continuous, and strongly adherent oxide film (passive layer) develops. This film acts as a barrier, isolating the base metal from the aggressive acid and limiting the corrosion rate to negligible levels (frequently below 0.1 mm per year).
Primary Applications
Anodically protected piping is principally employed in environments where materials are susceptible to active corrosion but exhibit stable passive behavior under an applied potential. The most significant applications include:
  • Sulfuric Acid Transport: Pipeline systems for moving concentrated sulfuric acid within manufacturing plants, storage terminals, and loading/unloading operations.
  • Acid Cooling Systems: Protecting stainless steel coolers and spiral plate heat exchangers that handle hot, concentrated acid streams.
  • Process Lines in Refinery Units: Within petroleum refineries, AP technology safeguards piping in sulfuric acid alkylation sections.
  • Acid Storage Vessels: Although distinct from piping, similar AP technology is applied to protect the walls of large carbon steel and stainless steel acid storage tanks.
Design and Operational Advantages
  • Extended Service Life: Through near-complete elimination of corrosion, AP significantly prolongs the operational lifespan of costly stainless steel piping systems.
  • Product Quality Maintenance: The passive layer prevents the dissolution of metal ions (such as iron, chromium, and nickel) into the acid, thereby avoiding product contamination.
  • Safety and Mechanical Integrity: Preserving the pipe's structural strength under harsh conditions reduces the risk of leaks and catastrophic failures, enhancing plant safety.
  • Cost Effectiveness: Over the long term, it offers a highly economical method for corrosion control, minimizing downtime, maintenance activities, and replacement costs.
System Monitoring and Maintenance
The effectiveness of anodically protected piping relies on the consistent performance of its constituent components. The pipe's potential is continuously monitored by reference electrodes and regulated by the DC power supply. Routine maintenance includes:
  • Reference Electrode Inspection: Checking the stability and condition of reference electrodes, as their failure can lead to under-protection or over-protection, potentially causing accelerated corrosion.
  • Cathode Examination: Inspecting cathode electrodes for signs of deterioration or accelerated corrosive attack.
  • Potential Verification: Regularly confirming that the pipe's potential remains within the designated passive range to ensure uninterrupted protection.
