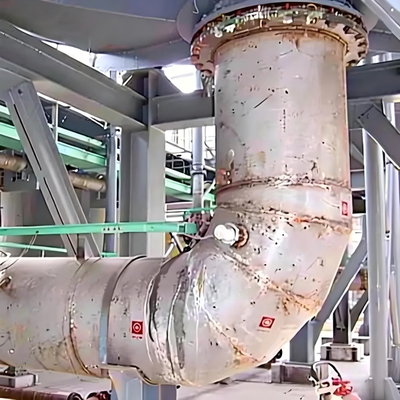

Anodically Protected Acid Pipe with Stainless Steel Construction for Sulfuric Acid Transport
Acid Pipe: Anodically Protected Piping System
Anodically Protected Piping represents a sophisticated system of metallic pipes, typically manufactured from austenitic stainless steel grades including 304L or 316L. These systems are protected against corrosion through an external electrochemical technique known as anodic protection (AP), widely implemented in chemical and petrochemical industries for safe handling of highly corrosive media such as concentrated sulfuric acid (above 85% concentration) and oleum.
Working Principle
Anodic protection utilizes an externally applied direct current (DC) to maintain the internal surface of piping in a passive state, effectively preventing corrosion in aggressive chemical environments.
System Components
A complete anodic protection system for piping incorporates several essential components:
The Piping (Anode): Constructed from passivatable alloys like 316L stainless steel, serving as the anode in the electrical circuit
DC Power Supply: Controlled power source delivering necessary current to maintain the pipe's protective potential
Cathodes: Electrodes typically made of materials like Hastelloy B-2, installed within the pipe and connected to the negative terminal
Reference Electrodes: Stable electrodes such as platinized titanium (Pt/Ti) for continuous monitoring of pipe wall electrochemical potential
Protection Mechanism
In highly corrosive environments like hot sulfuric acid, unprotected stainless steel experiences rapid corrosion. The AP system counteracts this by applying a controlled positive potential to the pipe, forcing the metal surface into a passive potential range where a thin, continuous oxide film forms. This passive layer acts as a protective barrier, isolating base metal from corrosive acid and reducing corrosion rates to negligible levels (typically less than 0.1 mm per year).
Key Applications
Anodically protected piping is primarily deployed in environments where materials are susceptible to active corrosion but demonstrate stable passive behavior under applied potential:
Sulfuric Acid Transport: Piping systems for transferring concentrated sulfuric acid in manufacturing plants, storage facilities, and loading/unloading operations
Acid Coolers and Heat Exchangers: Protection for stainless steel coolers and spiral plate heat exchangers handling hot, concentrated acid
Process Piping in Alkylation Units: Protection for piping in sulfuric acid alkylation units within petroleum refineries
Acid Storage Tanks: Similar AP technology applied to protect walls of large carbon steel and stainless steel acid storage tanks
Design and Operational Advantages
Extended Service Life
Virtually eliminates corrosion, dramatically extending operational lifespan of expensive stainless steel piping systems
Product Purity
Passive layer prevents dissolution of metal ions into acid, eliminating product contamination
Safety and Integrity
Maintains pipe structural integrity under harsh conditions, reducing risk of leaks and catastrophic failures
Cost-Effectiveness
Economical corrosion control method reducing downtime, maintenance, and replacement costs over long term
System Monitoring and Maintenance
The effectiveness of anodically protected piping depends on stable performance of system components. Pipe potential is continuously monitored by reference electrodes and controlled by DC power supply. Regular maintenance protocols include:
Reference Electrode Inspection: Checking stability and integrity to prevent under-protection or over-protection that could cause accelerated corrosion
Cathode Inspection: Examining cathode electrodes for signs of degradation or accelerated corrosion
Potential Monitoring: Regular verification that pipe potential remains within designated passive range to ensure continuous protection
