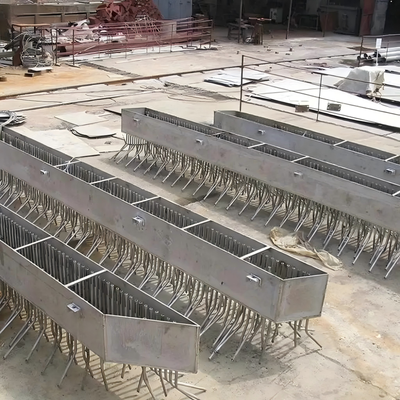

Anodic Protection System for Acid Distributor with Corrosion Control, Uniform Fluid Dispersion, and Extended Durability

Product Description

Anodic Protection System For Acid Distributor

Product Overview

The Anodic Protection Acid Device is a technical solution engineered for processing concentrated sulfuric acid (strength above 96%) and oleum within industrial operations. Its principal applications include sulfuric acid alkylation units at petroleum processing facilities and absorption/drying sections of acid production installations.

This device handles two separate operational demands: it delivers consistent fluid deposition over vessel internal surfaces while employing electrochemical barrier formation to withstand aggressive acid environments.

Functioning Principles

Flow Distribution Method:

Interior configuration contains linked troughs, calibrated spill edges, and emission ports
Captures entering acid volume and separates it into multiple individual streams
Ensures uniform descent onto underlying packing medium
Promotes thorough wetting of packing material and prevents unwetted zones
Facilitates effective contact between gas and liquid phases within the column

Corrosion Control Through Anodic Techniques:

Conventional metallic substances experience accelerated breakdown when exposed to heated, concentrated sulfuric acid. The equipment addresses this challenge through material selection combined with an imposed anodic protection arrangement.

Technical Concept: Regulated electrical potential maintains metal surface in passive domain, encouraging protective coating formation
Practical Consequence: Confines material degradation to minimal rates (below 0.1 mm per annum), extending equipment life and preventing metallic impurities in process acid

Physical Attributes

Material Specification: Constructed from austenitic stainless steel varieties (304L, 316L) selected for anodic conditioning response and acid attack resilience
Hydraulic Characteristics: Employs meticulously determined weir elevations and orifice dimensions for uniform fluid dispersion
Installation Procedure: Manufactured in modular components for introduction through conventional vessel access points, enabling interior assembly without on-site welding
Electrical Arrangement: Integrates deliberately positioned conductor elements within acid flow to complete protective circuit without disrupting distribution patterns

Performance Characteristics

Extended Durability: Diminishes ongoing replacement expenditures through effective suppression of corrosion-related material loss
Fluid Purity Preservation: Blocks ingress of metallic elements into acid stream, satisfying quality specifications for critical downstream processes
Operational Efficacy: Maintains regular wetting of column internals, facilitating optimal mass transfer and separation performance
Structural Endurance: Preserves mechanical robustness during prolonged exposure to elevated temperatures and aggressive chemical media

Typical Deployment Scenarios

Alkylation Processes Employing Sulfuric Acid as Reaction Medium
Moisture Removal and Vapor Absorption Columns in Acid Manufacturing Facilities
Acid Thermal Management and Recirculation Systems
Critical Acid Containment and Transfer Arrangements

Concluding Observations: The Anodic Protection Acid Device integrates fundamental mechanical engineering concepts with refined electrochemical protection technology. Its capability to provide uniform acid deposition while resisting chemical degradation renders it a practical selection for facilities seeking reliable extended service in concentrated sulfuric acid applications.
