Home /Products/Acid Cooler/Anti Corrosion Anodic Protection Sulfuric Acid Cooler High Temperature Resistance

Anti Corrosion Anodic Protection Sulfuric Acid Cooler High Temperature Resistance

1
MOQ
Negotiated Price
Price
Anti Corrosion Anodic Protection Sulfuric Acid Cooler High Temperature Resistance
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

Anti Corrosion sulfuric acid cooler

,

Anodic Protection sulfuric acid cooler

,

High Temperature Resistance dry acid cooler
Basic Infomation
Place of Origin: China
Brand Name: Carpe Diem
Model Number: CD-001
Payment & Shipping Terms
Packaging Details: Naked
Delivery Time: 60 Workdays
Payment Terms: T/T
Supply Ability: 1000/year
Product Description



Anodic Protection Sulfuric Acid Cooler with Corrosion Resistant and High Temperature Resistance for Strong Acid First Absorption Acid Cooler

Process parameters

Project

Design parameters

Performance parameters


Shell Side
Tube Side
Shell Side
Tube Side

MEDIUM

Fluid name
Sulfuric Acid
93%
Cooling Water
Sulfuric Acid
93%
Cooling Water



Temperature (Inlet)  ℃
59
32
59
32



Temperature (Outlet)℃
50
40
50
39.946



Liquid Kg/h
1086000

1086000
480000



Density(inlet/outlet) Kg/m3
1810
1000
1810
1000



Viscosity(inlet/outlet)(cp)
7.9
0.76
7.9
0.76



Inlet pressure Mpa
0.5
0.3
0.5
0.3



Pressure drop, Mpa
≤0.1
≤0.1
0.068
0.022

PERFORMANCE

Heat exchanged quantity W

～4414590.0



Flow rate m/s

0.563
1.378



Heat transfer area affluent coefficient

1.15



Heat transfer coefficient W/m2 ℃

789.362



Heat transfer area m2

170

 MATERIAL

Type
shell and tube
The flow form
counter-current flow



Sealing form
welding connection in acid side, flange connection in water side



Materials and specifications
shell
304     δ= 10




Heat transfer tube
316L    Φ19×1.5×6000




Tubesheet
304     δ= 55




Baffle-crossing
304     δ= 10




head
Q235-B  δ= 10



Flange standard
Shell Side
Tube Side




HG/T20592-2009(B) PN10 DN 450
HG/T20592-2009(B) PN10 DN 350

Size
Φ1100×7794×1570

Operating weight
16109 Kg

The scope of supply
●Complete set                                              ●Control system
         ●Special cable                                              ●Random accessories

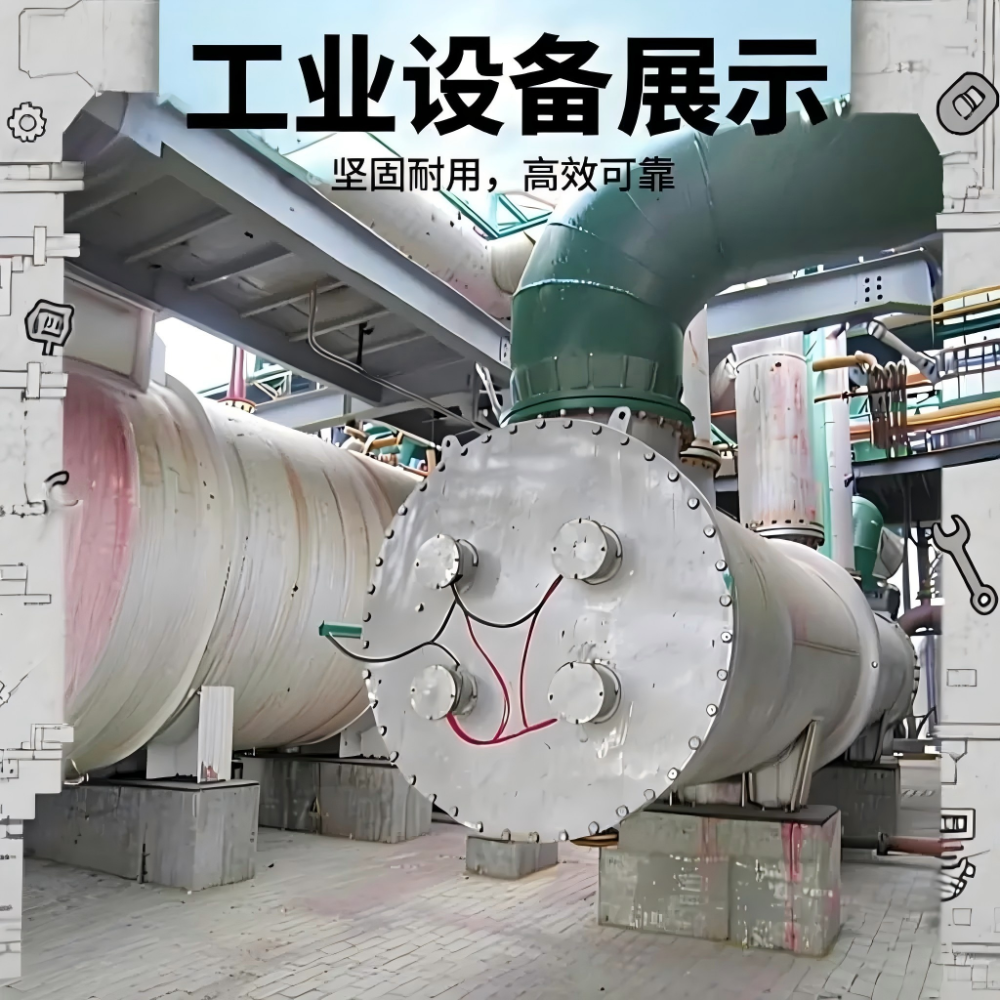

Anode Protection Sulfuric Acid Cooler
Jiangsu Carpe Diem Ocean Equipment Co., Ltd. specializes in industrial-grade heat transfer equipment designed for demanding chemical plant applications. The Anode Protection Sulfuric Acid Cooler represents their advanced solution for managing high-temperature acid processing.
Advanced Corrosion Protection Technology
This shell-and-tube heat exchanger is engineered specifically for handling 93% to 99% sulfuric acid in contact plant drying and absorption processes. Standard equipment quickly succumbs to corrosion under these extreme conditions, but our anodic protection system ensures long-term durability.
Anodic Protection System Operation
The system maintains steel components within the electrochemical "passive zone" through precise electrical control, utilizing cathode assemblies, reference electrodes, and a potentiostat for DC current regulation.
  • Protective Oxide Formation: Applied DC current creates an invisible but highly effective oxide film that reduces corrosion rates by orders of magnitude
  • Continuous Monitoring: Real-time potential monitoring between steel and electrode ensures consistent passive zone operation, preventing both active corrosion and transpassive conditions
  • Robust Construction: Heavy-duty rod baffles provide structural stability while enhancing heat transfer efficiency
Key Performance Advantages
  • Superior Corrosion Resistance: Enables stainless steel to withstand environments where it would normally fail rapidly
  • Stable Protective Film: Maintains integrity across temperature variations, preventing gradual equipment degradation
  • Enhanced Heat Transfer: Turbulent flow optimization and efficient heat plate utilization deliver maximum thermal performance with reduced energy consumption
  • Operational Reliability: Consistent performance with automated monitoring and remote access capabilities for modern facilities
  • High Temperature Operation: Safe operation at 160°C and above enables effective waste heat recovery for improved process economics
Industrial-Grade Construction
Every cooler from Jiangsu Carpe Diem Ocean Equipment Co., Ltd. delivers robust, maintenance-free performance with engineered reliability. Built to withstand the demanding conditions of large-scale acid processing plants, these units provide long-term operational stability and corrosion resistance.
