The Project in Xiangguang Copper

February 5, 2026

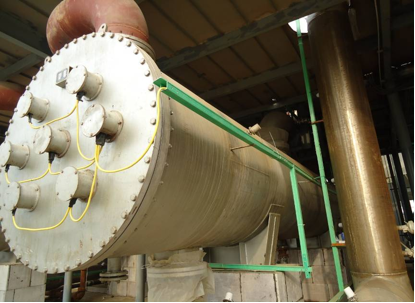

Latest company case about The Project in Xiangguang Copper

1. Drying Acid Cooler

Sulfuric Acid Concentration: 95%
Heat Transfer Area (F): 1300 m²
Acid Flow Rate: 1,627,965 kg/h
Acid Inlet Temperature: 61°C
Acid Outlet Temperature: 45°C
Acid Pressure: 430 kPa
Circulating Water Inlet Temperature: 32°C
Circulating Water Outlet Temperature: 42°C
Water Flow Rate: 926,250 kg/h
Water Pressure: 380 kPa

2. First Absorption Acid Cooler

Sulfuric Acid Concentration: 98.3%
Heat Transfer Area (F): 1200 m²
Acid Flow Rate: 3,050,807 kg/h
Acid Inlet Temperature: 100°C
Acid Outlet Temperature: 70°C
Acid Pressure: 430 kPa
Circulating Water Inlet Temperature: 32°C
Circulating Water Outlet Temperature: 42°C
Water Flow Rate: 3,410,063 kg/h
Water Pressure: 380 kPa

3. Second Absorption Acid Cooler

Sulfuric Acid Concentration: 98.3%
Heat Transfer Area (F): 300 m²
Acid Flow Rate: 1,496,178 kg/h
Acid Inlet Temperature: 91°C
Acid Outlet Temperature: 75°C
Acid Pressure: 430 kPa
Circulating Water Inlet Temperature: 32°C
Circulating Water Outlet Temperature: 42°C
Water Flow Rate: 861,929 kg/h
Water Pressure: 380 kPa
