Inner Mongolia Jin'ebo Fluorine Chemical Co., Ltd.

February 25, 2026

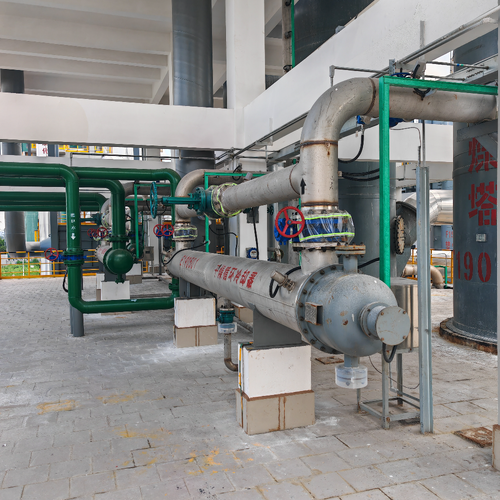

Latest company case about Inner Mongolia Jin'ebo Fluorine Chemical Co., Ltd.

1. Drying Acid Cooler

Sulfuric Acid Concentration: 96%
Heat Transfer Area (F): 1075 m²
Acid Flow Rate: 1,773,800 kg/h
Acid Inlet Temperature: 60°C
Acid Outlet Temperature: 45°C
Inlet Pressure: 0.3 MPa
Allowable Pressure Drop: ≤ 0.1 MPa
Medium Flow Velocity: 0.573 m/s

2. Fuming Sulfuric Acid Cooler

Sulfuric Acid Concentration: 104.5%
Heat Transfer Area (F): 1550 m²
Acid Flow Rate: 1,840,000 kg/h
Acid Inlet Temperature: 75°C
Acid Outlet Temperature: 45°C
Inlet Pressure: 0.3 MPa
Allowable Pressure Drop: ≤ 0.1 MPa
Medium Flow Velocity: 0.533 m/s

3. 98% Product Acid Cooler

Sulfuric Acid Concentration: 98.5%
Heat Transfer Area (F): 110 m²
Acid Flow Rate: 275,00 kg/h
Acid Inlet Temperature: 80°C
Acid Outlet Temperature: 40°C
Inlet Pressure: 0.5 MPa
Allowable Pressure Drop: ≤ 0.07 MPa
Medium Flow Velocity: 0.055 m/s
