F=365m² Drying Acid Cooler

April 7, 2026

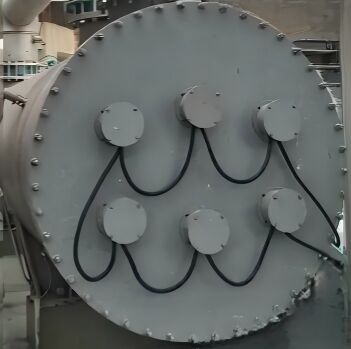

Latest company case about F=365m² Drying Acid Cooler

1. Drying Acid Cooler

Sulfuric Acid Concentration: 94~98%
Heat Transfer Area (F): 365 m²
Flow Rate Shell Side(m/s): 0.562
Flow Rate Tube Side(m/s): 1.477
Acid Inlet Temperature: 74°C
Acid Outlet Temperature: 60°C
Inlet Pressure: 0.4 MPa
Allowable Pressure Drop: ≤ 0.1 MPa

2. First Absorption Acid Cooler

Sulfuric Acid Concentration: 94~98%
Heat Transfer Area (F): 410 m²
Flow Rate Shell Side(m/s): 0.590
Flow Rate Tube Side(m/s): 0.411
Acid Inlet Temperature: 80°C
Acid Outlet Temperature: 45°C
Inlet Pressure: 0.4 MPa
Allowable Pressure Drop: ≤ 0.1 MPa

3. Second Absorption Acid Cooler

Sulfuric Acid Concentration: 94~98%
Heat Transfer Area (F): 135 m²
Flow Rate Shell Side(m/s): 0.163
Flow Rate Tube Side(m/s): 0.737
Acid Inlet Temperature: 68°C
Acid Outlet Temperature: 40°C
Inlet Pressure: 0.4 MPa
Allowable Pressure Drop: ≤ 0.1 MPa
